Model NO.
API 5CT J 55/K55/N80/C75/L80/C90/T95/Q125 etc
Keywords: Seamless (SMLS), Electric Resistance Welded (ERW);Casing;oil pipe
Size: OD: 4 1/2’’ ~ 20’’ (114.3mm ~ 508mm);WT: 0.205’’ ~ 0.635’’ (5.21mm ~ 16.13mm);LENGTH: R1, R2, R3
Standard & Grade: API 5CT J 55/K55/N80/C75/L80/C90/T95/Q125
Ends: Beveled, Square Cut, With LTC/STC/BTC/VAM Connection
Delivery : Within 30 days and Depends on your order quantity
Payment: TT, LC , OA , D/P
Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped, Two Tags
Usage: Used as the Structural Retainer for the Walls of Oil, Gas Wells
Quantity:

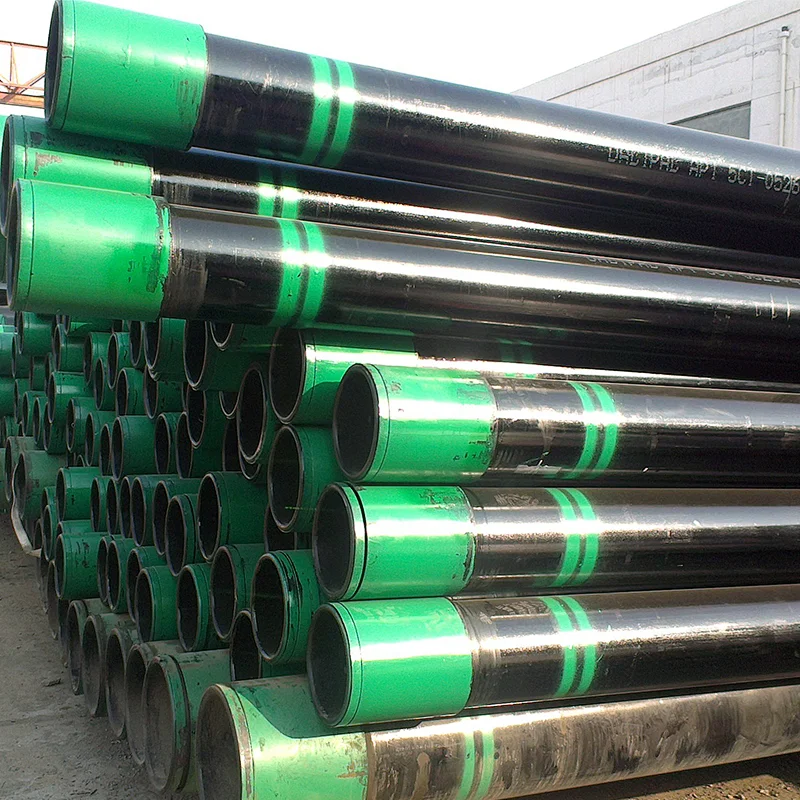

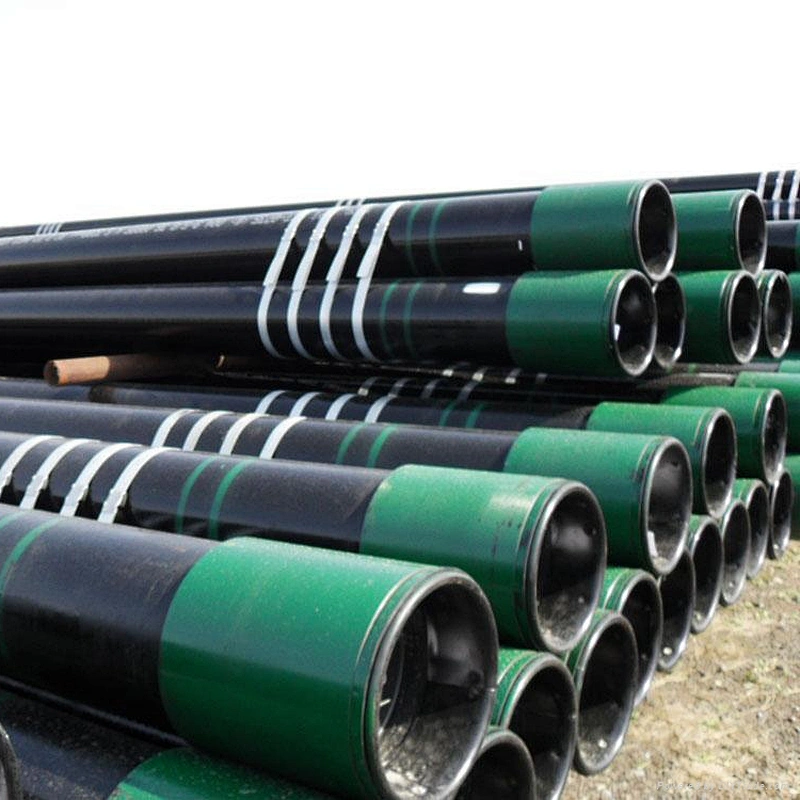

Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface formations and the well bore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.

Well Casing serves as well sidewall. Standards and Technical Conditions for Supply:API Spec 5CT ISO13680 Grade: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,​C95, P110. Tread types: NUE, EUE, VAM, STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Oil Casing Pipe: Casings are used for fixing the well wall or down hole, which have wide diameters, can be divided into conductor casings, technical casings and Oil casings.

Uses: Well Casing serves as well sidewall.

Standards and Technical Conditions for Supply:API Spec 5CT

Grade of pipe casing: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110.

Tread types of pipe casing : STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Dimension: OD: 114.3-508mm WT: 5.21-16.13mm

Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface formations and the well bore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.

Well Casing serves as well sidewall. Standards and Technical Conditions for Supply:API Spec 5CT ISO13680 Grade: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,​C95, P110. Tread types: NUE, EUE, VAM, STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Oil Casing Pipe: Casings are used for fixing the well wall or down hole, which have wide diameters, can be divided into conductor casings, technical casings and Oil casings.

Uses: Well Casing serves as well sidewall.

Standards and Technical Conditions for Supply:API Spec 5CT

Grade of pipe casing: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110.

Tread types of pipe casing : STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Dimension: OD: 114.3-508mm WT: 5.21-16.13mm

Sorry! No related records found.

Send Message

* clear input
*

Related Products

Model NO. API 5CT J55/K55/N80/C75/L80/C90/T95/Q125 etc
Model NO. API5L,ASTM A106/A53 etc
Model NO. API 5CT / 5B;J 55, K 55, N 80-1, N80 Q, C 90, C 95, T 95, P 110, Q 125 etc

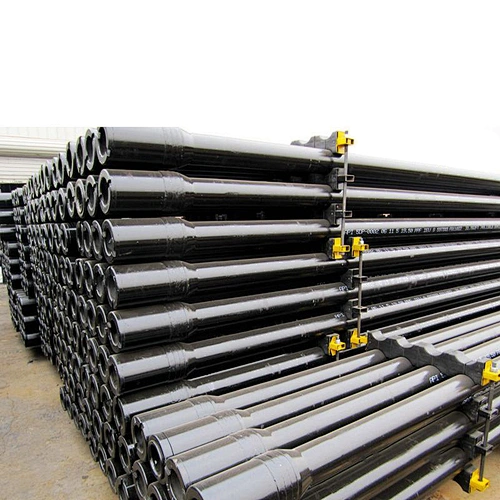

Model NO. API 5DP E 75/X 95/G 105/S 135 etc
