Model NO.
ASTM A234 WPB/WPC, ASTM 403 304/304L,316/316L, ASTM A234 WP1/5/9/11/12/22/91 etc
Keywords: Equal Tee,Unequal Tee, Cross Tee, Socket Tee, Short Tee, Forging Tee
Size: NPS from 1/2'' to 36'', DN from 15 to 900, WT: 2-80mm, SCH 40/80/XXS
Material & Standard: Carbon Steel --- ASTM A234 WPB/WPC, ANSI B 16.9, ASTM A105/A106/A53;Stainless Steel --- ASTM 403 304/304L,316/316L,316Ti,321,317L,310S;Alloy Steel --- ASTM A234 WP1/5/9/11/12/22/91
Ends : Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Delivery: Within 30 days and Depends on your order quantity
Payment: TT, LC , OA , D/P
Packing: Packed in Wood Cabins/ Wood Tray
Usage: Oil and gas transmissions;Petroleum and Oil refining;Water treatment systems;Chemical Industries; Sanitary tubing;Power stations;Machines and equipment;Heat Exchange

Pipe Tee, Tee Fittings

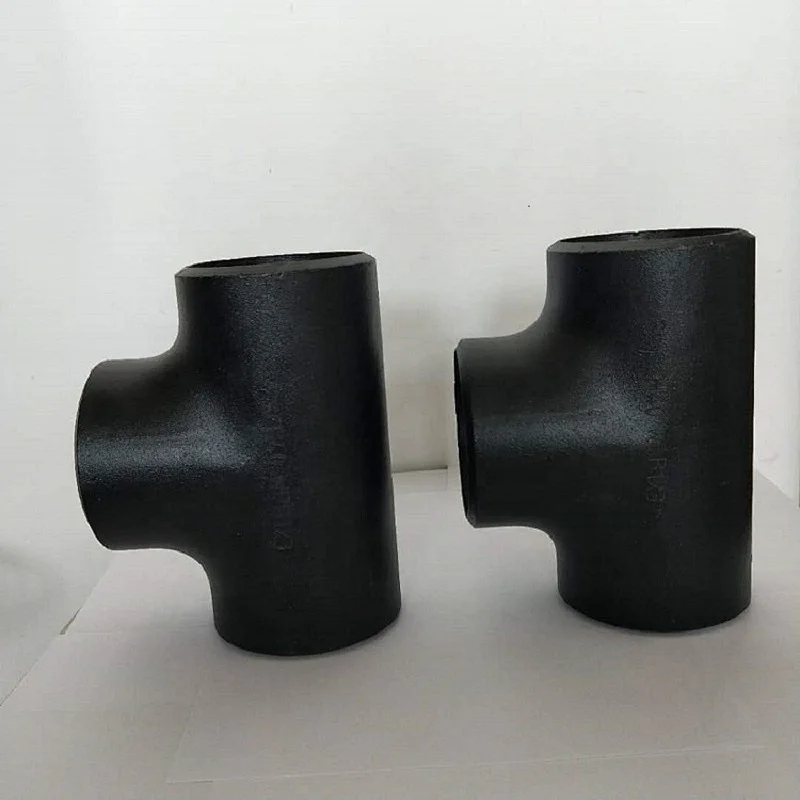

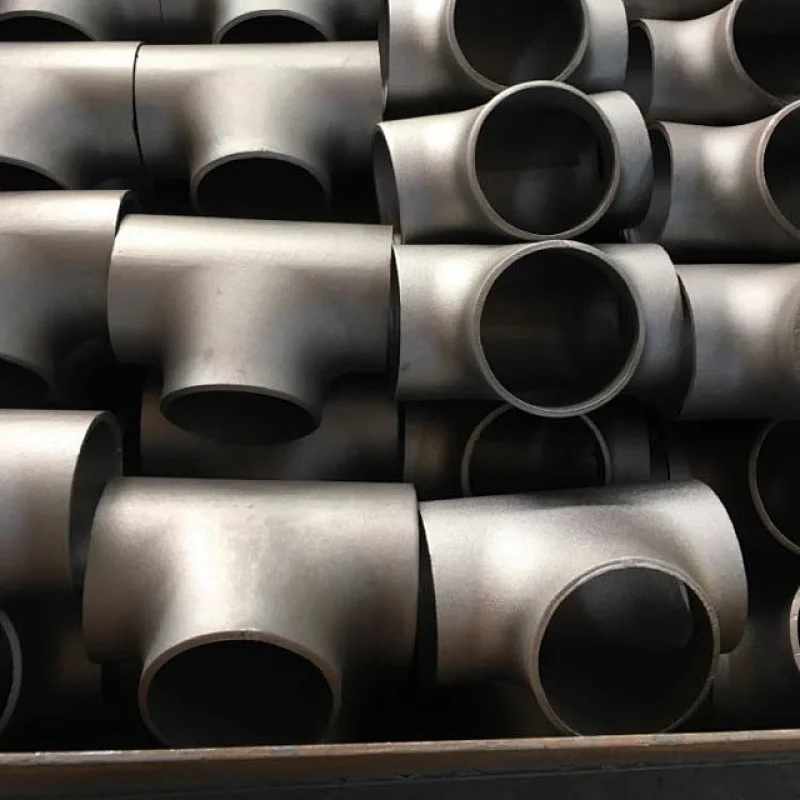

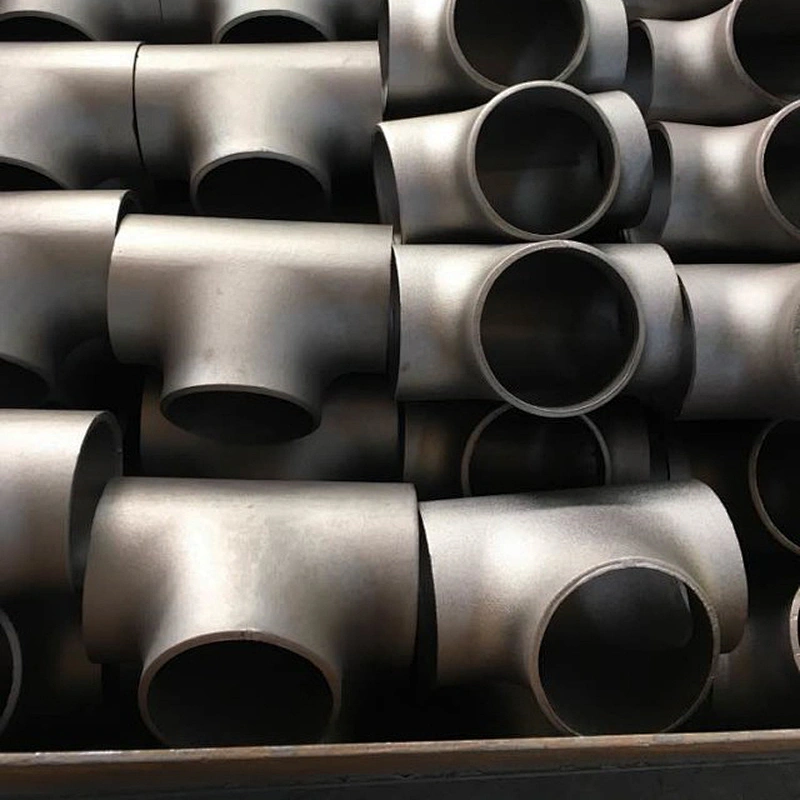

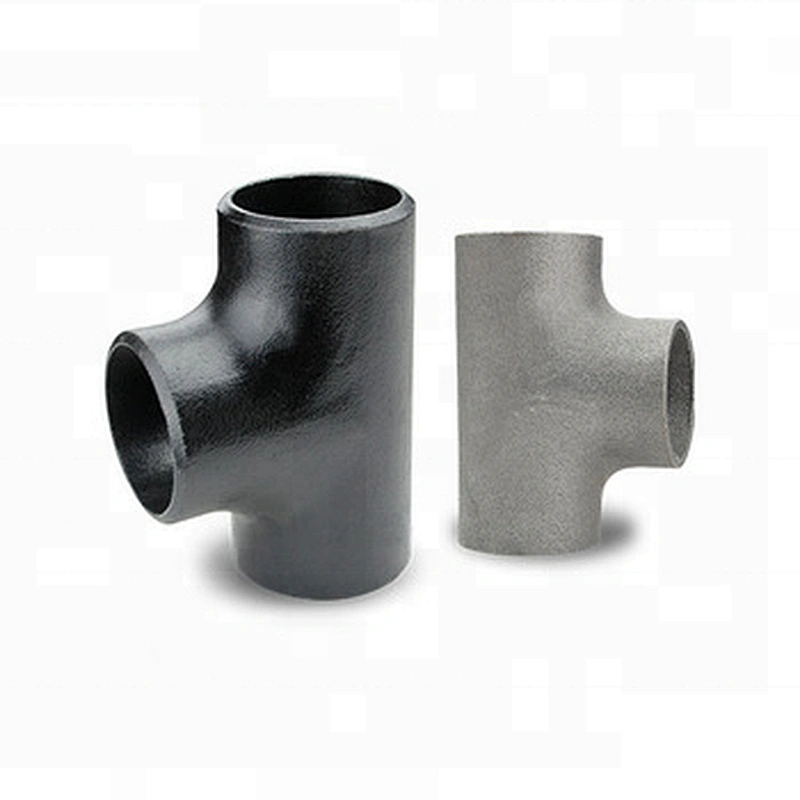

A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes, but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity to control the volume when requried.

Steel pipe tee has three branches that can change fluid direction. It has T-shaped or Y-shaped, and include Equal Tee and Reducing Tee (Reducer Tee). Steel tee is widely used in pipe networks for convey liquids and gases.

types of steel pipe tee:

According to branch diameters and functions there are:

Equal Tee

Reducing Tee (Reducer Tee).

According to connection types are:

Butt Weld Tee

Socket Weld Tee

Threaded Tee.

According to material types there are:

Carbon Steel Pipe Tee

Alloy Steel Tee

Tee-01 tee-02
